PT 1,5/ 3-PH-3,5 is a 3-position plug component from PHOENIX CONTACT with a rated current of 8 A, a rated voltage of 160 V, a pitch of 3.5 mm, a screw connection and a green color.
The PT 1.5/3-PH-3.5 is a 3‑position plug component with screw terminals, designed for industrial electrical connections. It is rated for 8 A nominal current and 160 V nominal voltage, with a 3.5 mm pitch and a green housing.

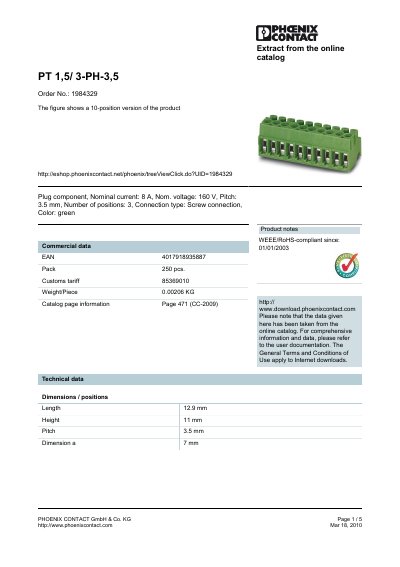

The sheet provides dimensions, material specifications, approved certifications, and accessory information, along with a dimensioned drawing and ordering details.
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 3 |
| Connection type | Screw connection |
| Color | Green |
| Length | 12.9 mm |
| Height | 11 mm |
| Weight per piece | 0.00206 kg |
The nominal current is 8 A.
The pitch is 3.5 mm.
The housing is green.
It has three terminal positions.
