SPTA 1/ 2-3,5 is a PC terminal block produced by PHOENIX CONTACT. It has a nominal current of 9 A, a rated voltage of 160 V, a pitch of 3.5 mm, a position number of 2, a connection type of spring cage connection, an assembly method of soldering, a conductor/PCB connection direction of 45°, and a color of green.
The SPTA 1/2-3,5 is a compact terminal block from Phoenix Contact with a 3.5 mm pitch and two positions. It features a spring‑cage connection, solder‑type assembly, and a green housing.

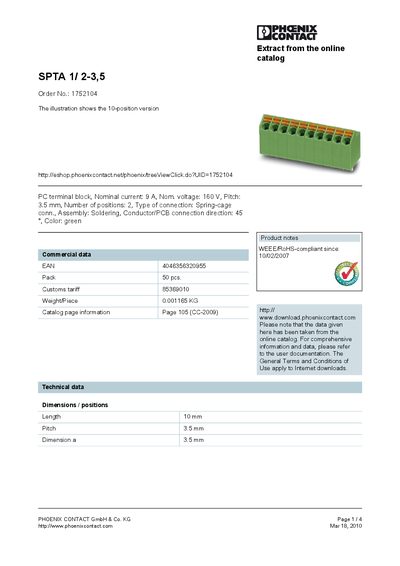

The leaflet provides detailed technical data such as nominal current (9 A), nominal voltage (160 V), surge voltage ratings, dimensions, insulation material, and certifications (CUL, UL). Contact information for Phoenix Contact and ordering details are also included.
| Nominal current | 9 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 2 |
| Type of connection | Spring‑cage |
| Assembly method | Soldering |
| Conductor/PCB connection direction | 45° |
| Color | green |
| Pin dimensions | 0.6 × 1.0 mm |
The terminal block is rated for a nominal current of 9 A.
The pitch of the terminal block is 3.5 mm.
It is certified according to CUL and UL standards.
The nominal voltage rating is 160 V.
