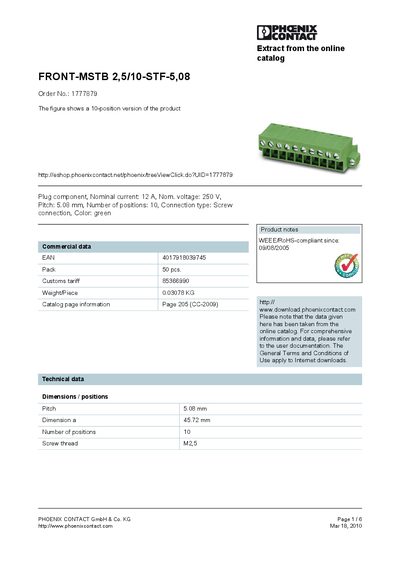

This document describes the product FRONT-MSTB 2,5/10-STF-5,08 from PHOENIX CONTACT GmbH & Co. KG. The product is a plug component with a nominal current of 12A, a nominal voltage of 250V, a screw connection, and a green color.
The FRONT-MSTB 2,5/10-STF-5,08 is a 10‑position feed‑through modular terminal block with a 5.08 mm pitch. It is rated for 12 A nominal current and 250 V nominal voltage (320 V for the green‑yellow version) and complies with WEEE/RoHS regulations.
The handbook lists detailed technical data, tightening torque values, approved certifications (CSA, CUL, UL, VDE‑PZI), and a range of accessories such as removal aids, marker cards, and specialized tools. Additional product references and part numbers are provided for related bridges and cross‑connectors.
| Nominal current | 12 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5.08 mm |
| Number of positions | 10 |
| Weight per piece | 0.03078 kg |
| EAN | 4017918039745 |
| WEEE/RoHS compliance date | 09/08/2005 |
The terminal block is rated for a nominal current of 12 A.
It has 10 positions.
The pitch is 5.08 mm.
