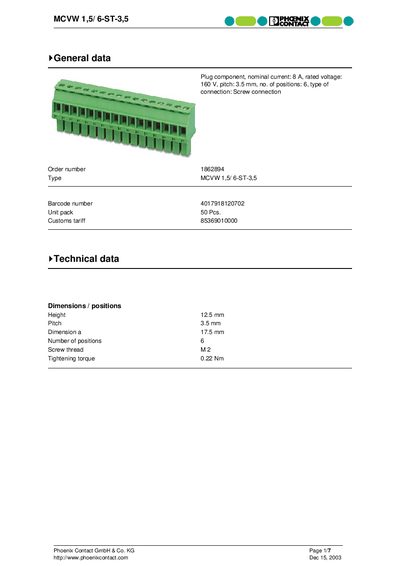

MCVW 1,5/ 6-ST-3,5 is a connector product from Phoenix Contact. Its rated current is 8 A, rated voltage is 160 V, mounting pitch is 3.5 mm and connection type is screw connection.
The MCVW 1,5/6-ST-3,5 is a screw‑connection terminal block with a nominal current of 8 A and a rated voltage of 160 V. It features a 3.5 mm pitch, six positions, a height of 12.5 mm and a 17.5 mm overall length. The unit is supplied in packs of 50 and includes specifications such as a tightening torque of 0.22 Nm and a screw thread size M2.
The data sheet also lists compatible accessories (marker pens, marker cards, screwdriver), related product variants, and contact details for Phoenix Contact GmbH & Co. KG in Germany. Ordering information, customs tariff code and certification marks (UL, CUL) are provided for easy procurement.
| Nominal current | 8 A |
|---|---|
| Rated voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 6 |
| Height | 12.5 mm |
| Overall length (dimension a) | 17.5 mm |
| Screw thread | M2 |
| Tightening torque | 0.22 Nm |
| Customs tariff code | 85369010000 |
The nominal current is 8 A.
The rated voltage is 160 V.
It has six positions.
The pitch is 3.5 mm.
