This document introduces a plug component from PHOENIX CONTACT GmbH & Co. KG. The product has 5 positions, a nominal current of 41A, a nominal voltage of 1000V, an M3 screw thread, and can be used for screw connections. It is available in green color.

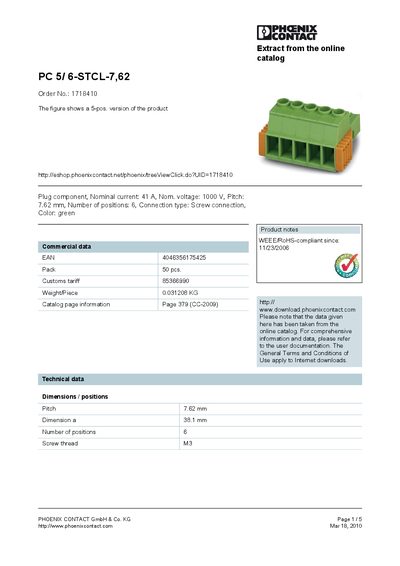

The PC 5/6-STCL-7,62 is a screw‑connection plug component with a 7.62 mm pitch, green housing, and six positions. It is rated for a nominal current of 41 A and a nominal voltage of 1000 V, and complies with RoHS/WEEE standards.
The datasheet provides detailed technical data, including tightening torque (0.7‑0.8 Nm), weight (0.031208 kg per piece), and derating curves for various conductor cross‑sections. Certifications such as CUL and UL are listed, along with connection data for solid and stranded conductors.
| Nominal current | 41 A |
|---|---|
| Nominal voltage | 1000 V |
| Pitch | 7.62 mm |
| Number of positions | 6 |
| Connection type | Screw connection |
| Color | green |
| Weight per piece | 0.031208 kg |
The PC 5/6-STCL-7,62 is rated for a nominal current of 41 A.
The plug has a pitch of 7.62 mm.
It provides six positions.
The tightening torque ranges from 0.7 Nm (minimum) to 0.8 Nm (maximum).
