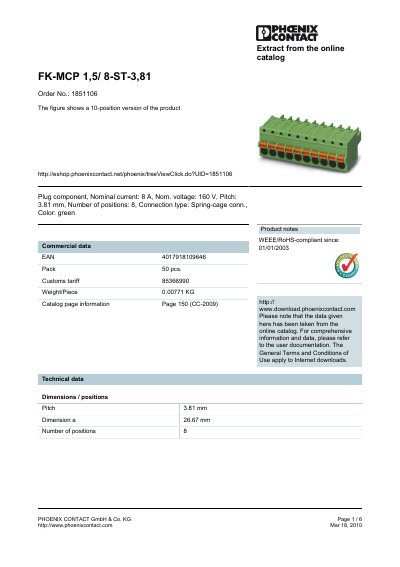

This document describes the features and characteristics of the plug component FK-MCP 1,5/ 8-ST-3,81 from PHOENIX CONTACT GmbH & Co. KG, including nominal current, nominal voltage, connection type, etc.
The FK-MCP 1.5/8-ST-3.81 is a spring‑cage terminal block with eight positions, a 3.81 mm pitch, and a green housing. It is rated for 8 A nominal current and 160 V nominal voltage, suitable for 1.5 mm² conductors.
The document provides dimensions, electrical ratings, certification information, accessory part numbers, and a wiring diagram. It also lists related header products and contact details for Phoenix Contact.
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.81 mm |
| Number of positions | 8 |
| Color | green |
| Insulating material group | I |
| Rated surge voltage (III/3) | 2500 V |
| Maximum load current (1.5 mm²) | 8 A |
The nominal current is 8 A.
The pitch is 3.81 mm.
It has eight positions.
The housing is green.
