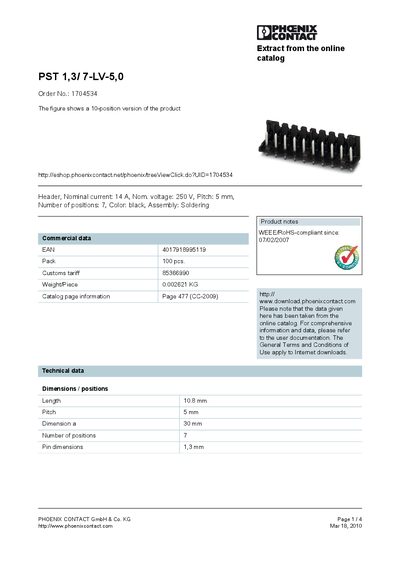

This document describes the features and characteristics of the product PST 1,3/ 7-LV-5,0 from PHOENIX CONTACT GmbH & Co. KG, including header, nominal current, nominal voltage, assembly, color, etc.
The PST 1,3/7-LV-5,0 is a 7‑position, 5 mm pitch connector designed for 14 A nominal current and 250 V nominal voltage. It features a compact 10.8 mm length, 30 mm overall width, and 1.3 mm pin diameter, with a weight of 2.6 g per piece.
The data are extracted from the Phoenix Contact online catalog (page 477, CC‑2009). For complete user documentation and additional information, visit the Phoenix Contact website or refer to the full catalog entry.
| Nominal current | 14 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5 mm |
| Number of positions | 7 |
| Length | 10.8 mm |
| Width (Dimension a) | 30 mm |
| Pin diameter | 1.3 mm |
| Weight per piece | 0.002621 kg |
| WEEE/RoHS compliance date | 07/02/2007 |
The connector is rated for a nominal current of 14 A.
It has 7 positions.
The pitch is 5 mm.
