This product is a PC 5/ 6-G-7,62 connector from PHOENIX CONTACT GmbH & Co. KG. It has a rated current of 41 A, a rated voltage of 500 V, a pitch of 7.62 mm, a pin count of 6, a green color, and is assembled by soldering.
The PC 5/6-G-7,62 is a 6‑position, green‑colored connector from Phoenix Contact designed for soldering assembly. It features a 7.62 mm pitch, a nominal current of 41 A and a nominal voltage of 500 V.

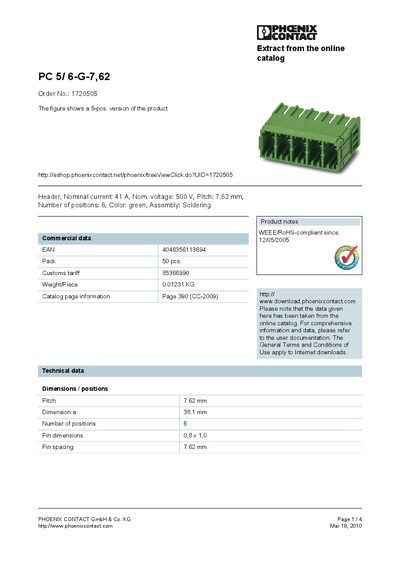

The handbook provides technical data such as dimensions, pin spacing, weight (0.01231 kg per piece), packaging (50 pcs), and certification details (CUL, UL). Additional drawings and drilling plans are included, and contact information for Phoenix Contact is provided for further inquiries.
| Nominal current | 41 A |
|---|---|
| Nominal voltage | 500 V |
| Pitch | 7.62 mm |
| Number of positions | 6 |
| Color | green |
| Assembly method | Soldering |
| Weight per piece | 0.01231 kg |
The nominal current is 41 A.
It has 6 positions.
The pitch is 7.62 mm.
