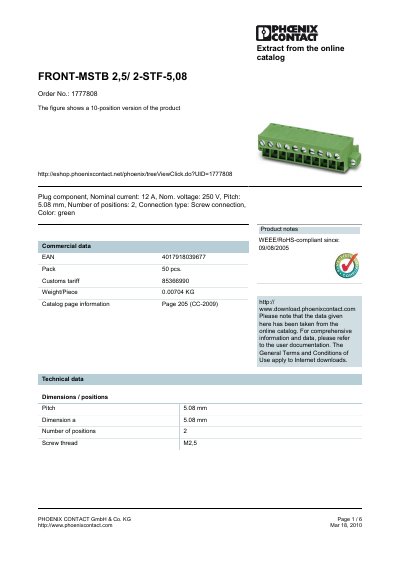

This is a data sheet from PHOENIX CONTACT for the product FRONT-MSTB 2,5/ 2-STF-5,08. The product is a 2-position plug assembly with a rated current of 12A and a rated voltage of 250V. The pitch between the pins is 5.08mm and the product is green in color.
The FRONT-MSTB 2.5/2-STF-5.08 is a front‑mount terminal block connector designed for industrial electrical applications. It features a 5.08 mm pitch, two positions, and a screw‑type connection, available in green color.
Key specifications include a nominal current of 12 A, nominal voltage of 250 V, tightening torque between 0.5 Nm and 0.6 Nm, and compliance with multiple certifications (CB, CSA, CUL, GL, GOST, UL, VDE‑PZI). Accessories such as removal aids and marker cards are also listed.
| Nominal current | 12 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5.08 mm |
| Number of positions | 2 |
| Connection type | Screw connection |
| Color | green |
| Tightening torque (min) | 0.5 Nm |
| Tightening torque (max) | 0.6 Nm |
| Insulating material | PA |
| Inflammability class | UL 94 V0 |
| Weight per piece | 0.00704 kg |
| EAN | 4017918039677 |
| Certifications | CB, CSA, CUL, GL, GOST, UL, VDE‑PZI |
The connector is rated for a nominal current of 12 A.
The recommended tightening torque is between 0.5 Nm and 0.6 Nm.
It is certified according to CB, CSA, CUL, GL, GOST, UL, and VDE‑PZI standards.
