FMCD 1,5/ 3-ST-3,5 is a connector product from PHOENIX CONTACT. It has a rated current of 8 A, a rated voltage of 160 V, a pitch of 3.5 mm, a socket type of spring cage connector, and a green color.
The FMCD 1.5/3-ST-3.5 is a green, spring‑cage connector with three positions and a 3.5 mm pitch, designed for nominal currents of 8 A and nominal voltages of 160 V. It is supplied in packs of 50 pieces and complies with WEEE/RoHS regulations.

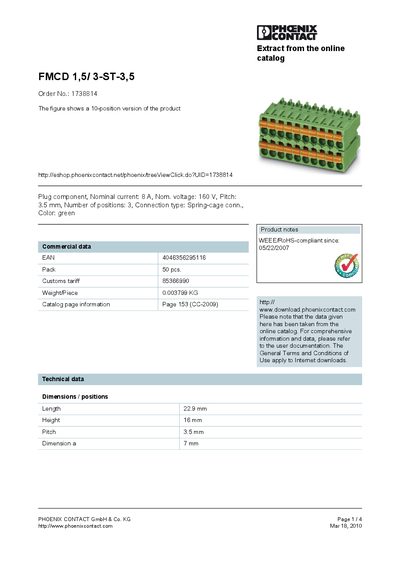

The datasheet provides detailed commercial and technical data such as dimensions (22.9 mm × 16 mm), weight per piece (0.003799 kg), electrical ratings (surge voltage up to 2.5 kV, rated voltages 160 V/320 V), and material information (insulating material PA, UL‑94 class). Packaging, EAN code, and contact information for Phoenix Contact are also listed.
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 3 |
| Connection type | Spring‑cage |
| Color | green |
| Length | 22.9 mm |
| Height | 16 mm |
| Weight per piece | 0.003799 kg |
| Pack quantity | 50 pcs |
| WEEE/RoHS compliance date | 05/22/2007 |
The connector is rated for a nominal current of 8 A.
It has three positions.
The pitch is 3.5 mm.
It is supplied in packs of 50 pieces.
