MSTBT 2,5/ 6-ST is a connector produced by PHOENIX CONTACT company. It is green. The nominal current is 12A, the rated voltage is 250V, the thread is M3, the wiring method is screw connection, and the package is 50 pieces.

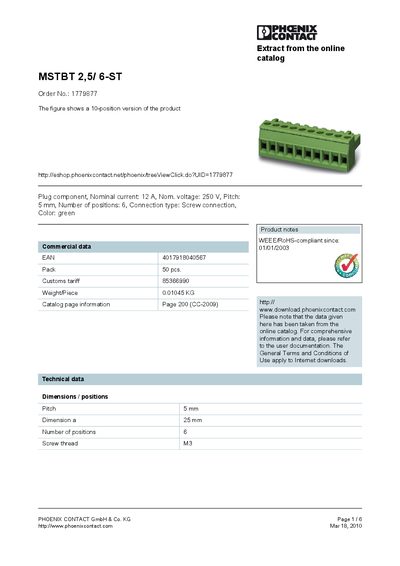

The MSTBT 2,5/6-ST is a green‑colored, 6‑position plug component with a 5 mm pitch. It is rated for a nominal current of 12 A and nominal voltages of 250 V (plug) or 320 V (header). The product data sheet provides detailed electrical ratings, mechanical dimensions, tightening torque values and packaging information.
The document also lists compatible accessories such as insertion bridges, cable housings, marker cards and tools, together with certification approvals (CB, CSA, CUL, GOST, UL, VDE‑PZI). Contact details for Phoenix Contact and ordering information are included at the end of the sheet.
| Nominal current | 12 A |
|---|---|
| Pitch | 5 mm |
| Number of positions | 6 |
| Weight per piece | 0.01045 kg |
| EAN | 4017918040567 |
The nominal current rating is 12 A.
It has 6 positions.
The pitch is 5 mm.
The minimum torque is 0.5 Nm and the maximum is 0.6 Nm.
