MFKDSP/ 6-5,08 is a PC terminal block produced by PHOENIX CONTACT. It has a rated current of 12A, a rated voltage of 250V, a pitch of 5.08mm, 6 positions, a spring cage connection type, a soldering assembly type, a 45° conductor/PCB connection direction, and a green color.
The MFKDSP/6-5,08 is a green‑colored, spring‑cage terminal block from Phoenix Contact with a 5.08 mm pitch and six positions. It is designed for soldered PCB connections and supports a nominal current of 12 A at 250 V.

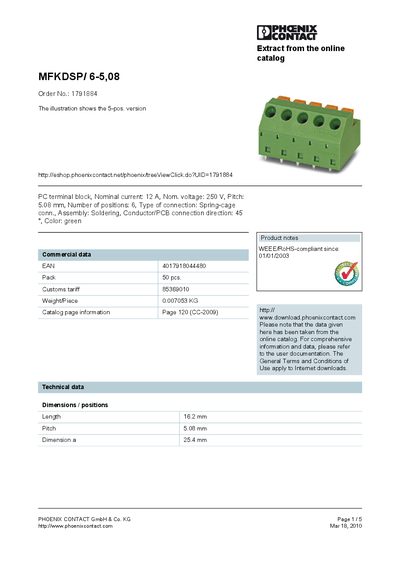

The datasheet lists detailed technical data such as dimensions (16.2 mm length, 5.08 mm pitch, 25.4 mm overall width), surge voltage ratings (4 kV), and various certifications (CSA, CUL, UL, GOST). It also includes accessory information like marker cards and plug adapters, plus a drilling plan for PCB layout.
| Nominal current | 12 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5.08 mm |
| Number of positions | 6 |
| Type of connection | Spring‑cage |
| Assembly method | Soldering |
| Color | Green |
| Certifications | CSA, CUL, UL, GOST |
The nominal current is 12 A.
It has six positions.
The pitch is 5.08 mm.
It is certified by CSA, CUL, UL and GOST.
