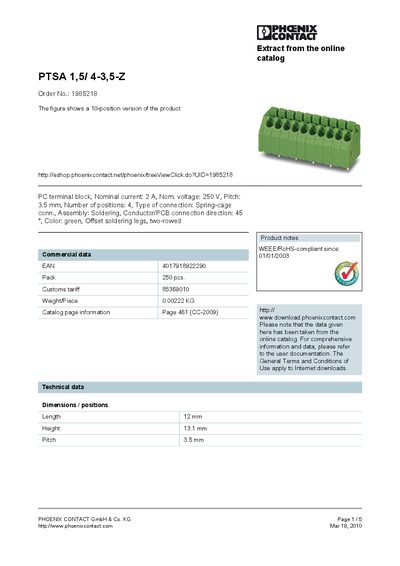

PTSA 1,5/ 4-3,5-Z is a PC terminal block from PHOENIX CONTACT with a nominal current of 2A, a rated voltage of 250V, a pitch of 3.5mm, 4 positions, a spring-cage connection, a soldering assembly, a conductor/PCB connection direction of 45 degrees, a green color, offset soldering legs, and a two-rowed structure.
The PTSA 1,5/4-3,5-Z is a 4‑position spring‑cage terminal block with a 3.5 mm pitch, designed for solder‑on PCB mounting. It is supplied in a green housing and complies with RoHS/WEEE regulations.
Key data include a nominal current of 2 A, nominal voltage of 250 V, and dimensions of 12 mm × 13.1 mm. The sheet also lists certification approvals (CCA, CUL, UL, VDE‑PZI) and provides a derating diagram for temperature effects.
| Nominal current | 2 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 3.5 mm |
| Number of positions | 4 |
| Weight per piece | 0.00222 kg |
The terminal block is rated for a nominal current of 2 A.
It is approved with CCA, CUL, UL, and VDE‑PZI certifications.
The pitch between pins is 3.5 mm.
