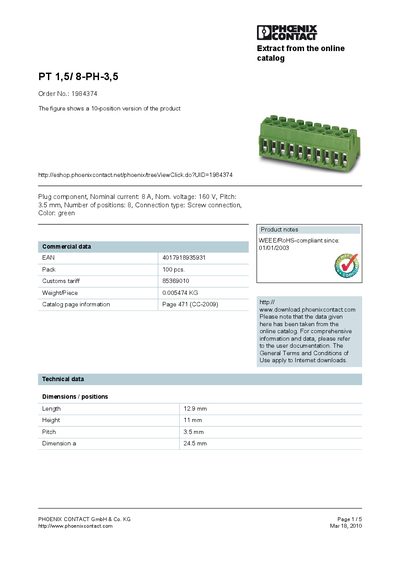

The document describes the features and characteristics of the product PT 1,5/8-PH-3,5 from PHOENIX CONTACT GmbH & Co. KG, including plug component, nominal current, nominal voltage, number of positions, connection type, color, etc.
The PT 1,5/8-PH-3,5 is an 8‑position plug component with a screw connection, nominal current 8 A, nominal voltage 160 V, and a 3.5 mm pitch. It is supplied in a green housing and complies with WEEE/RoHS regulations since 01/01/2003.
The document provides detailed technical data such as length (12.9 mm), height (11 mm), weight (0.005474 kg), tightening torque (0.22 Nm min / 0.25 Nm max), and various voltage and surge ratings. Certifications include CCA, CUL, SEV, and UL, and accessories like a compatible screwdriver are listed.
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 8 |
| Connection type | Screw connection |
| Length | 12.9 mm |
| Height | 11 mm |
| Weight per piece | 0.005474 kg |
| Tightening torque (min) | 0.22 Nm |
| WEEE/RoHS compliance date | 01/01/2003 |
The plug is rated for a nominal current of 8 A.
It measures 12.9 mm in length, 11 mm in height, with a pitch of 3.5 mm.
It is certified according to CCA, CUL, SEV, and UL standards.
The required tightening torque is 0.22 Nm minimum and 0.25 Nm maximum.
