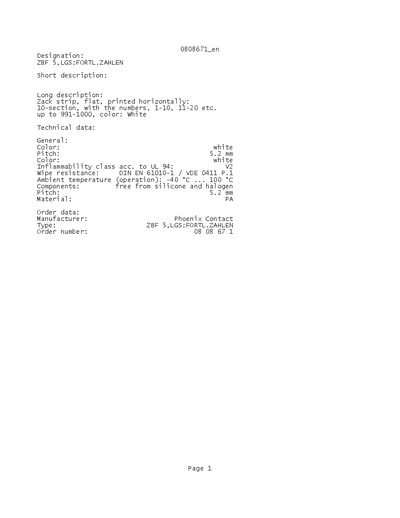

ZBF 5,LGS:FORTL.ZAHLEN is a Zack strip, flat, printed horizontally, with the numbers, 1-10, 11-20 etc. up to 991-1000, color: White produced by Phoenix Contact.
The ZBF 5 LGS:FORTL.ZAHLEN Zack strip from Phoenix Contact is a flat, horizontally printed terminal strip. It features white color, a 5.2 mm pitch, and numbered sections ranging from 1‑10 up to 991‑1000, allowing up to 1000 connections.
Technical data include an UL 94 V2 inflammability rating, DIN EN 61010‑1 wipe resistance, operation temperature from –40 °C to 100 °C, and construction from PA material free of silicone and halogen. Order information lists the manufacturer as Phoenix Contact and the order number 08 08 67 1.
| Color | white |
|---|---|
| Pitch | 5.2 mm |
| Inflammability class (UL 94) | v2 |
| Wipe resistance | DIN EN 61010-1 / VDE 0411 P.1 |
| Ambient temperature (operation) | -40 °C … 100 °C |
| Components | free from silicone and halogen |
| Material | PA |
| Maximum sections | up to 1000 |
| Order number | 08 08 67 1 |
The pitch is 5.2 mm.
It can operate from –40 °C up to 100 °C.
The strip provides up to 1000 numbered sections, from 1‑10 up to 991‑1000.
