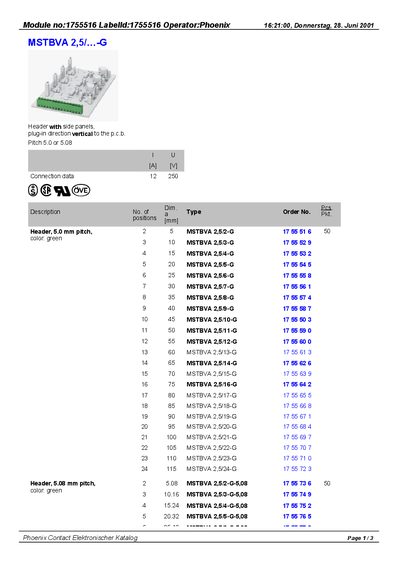

This PDF file provides detailed information on the MSTBVA 2,5/…-G connector, including the connector type, size, color, and order number.
The MSTBVA 2.5/-G series from Phoenix Contact comprises modular plug‑in connectors with side panels, designed for vertical mounting on PCBs. Variants are offered with different numbers of positions and a green housing color.
The document provides technical data such as pitch, pin dimensions, hole diameter, insulation material, and approval information (UL, CSA). Dimensional drawings and drilling diagrams are included for precise mechanical integration. This manual is written in German.
| Pitch | 5.0 mm or 5.08 mm |
|---|---|
| Short‑notice delivery | Available for items printed in bold |
The series is offered with a pitch of either 5.0 mm or 5.08 mm.
Yes, articles printed in bold in the catalogue can be delivered at short notice.
