MCV 1,5/ 2-GF-3,81 is a product of PHOENIX CONTACT, with a rated current of 8 A, a rated voltage of 160 V, a pin spacing of 3.81 mm, pin dimensions of 0.8 x 0.8 mm, a product color of green and a soldering assembly.
The MCV 1,5/2-GF-3,81 is a 2‑position, green‑colored terminal block with a 3.81 mm pitch, rated for 8 A and 160 V. It measures 7.25 mm in length and is supplied in packs of 50 pieces.

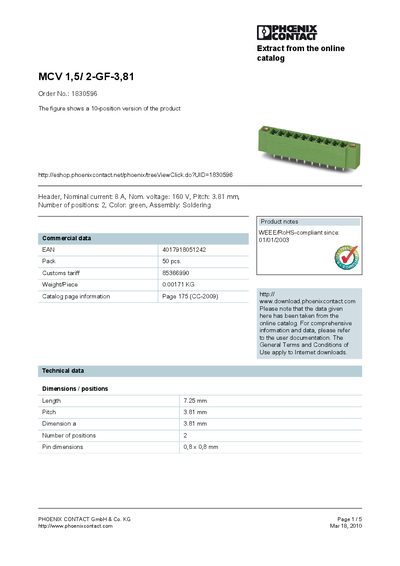

The sheet lists compatible accessories such as marker cards, keying profiles, and various plug adapters, and provides ordering information (Order No. 1830596) and contact details for Phoenix Contact.
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.81 mm |
| Number of positions | 2 |
| Length | 7.25 mm |
| Weight per piece | 0.00171 kg |
| EAN | 4017918051242 |
| Customs tariff | 85366990 |
| WEEE/RoHS compliance date | 01/01/2003 |
The terminal block is rated for a nominal current of 8 A.
It has 2 positions.
The pitch is 3.81 mm.
The order number is 1830596.
