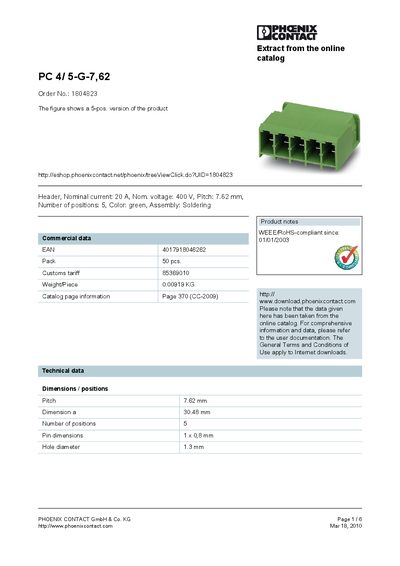

This document introduces the PC 4/ 5-G-7,62 product from PHOENIX CONTACT GmbH & Co. KG. The product is a 5-position connector with a rated current of 20A and a rated voltage of 400V. The pin dimensions are 1 x 0.8mm and the hole diameter is 1.3mm. The product is WEEE/RoHS-compliant.
This handbook provides the technical specifications, mechanical dimensions, accessory options and wiring diagrams for the Phoenix Contact PC 4/5-G-7,62 terminal block. It is extracted from the online catalog and intended for engineers and installers who need detailed product information.
Key sections include Technical Data (current, voltage, pitch, positions, certifications), Accessories (marker pens, plug adapters, mounting flanges), Diagrams/Drawings (derating curves, drilling plans), and a dimensioned drawing of the product. Contact and address information for Phoenix Contact is also listed.
| Nominal current | 20 A |
|---|---|
| Pitch | 7.62 mm |
| Number of positions | 5 |
| Color | green |
The nominal current is 20 A.
It has 5 positions.
The pitch is 7.62 mm.
