PT 1,5/ 2-PVH-3,5 is a 2-pole plug component from PHOENIX CONTACT with a rated current of 8 A and a rated voltage of 160 V. It has a screw connection and is green in color.
The PT 1,5/2-PVH-3,5 is a 2‑position screw‑connection terminal block with a 3.5 mm pitch, designed for 8 A nominal current and 160 V nominal voltage. It is supplied in a green (or black) housing and complies with RoHS and WEEE regulations.

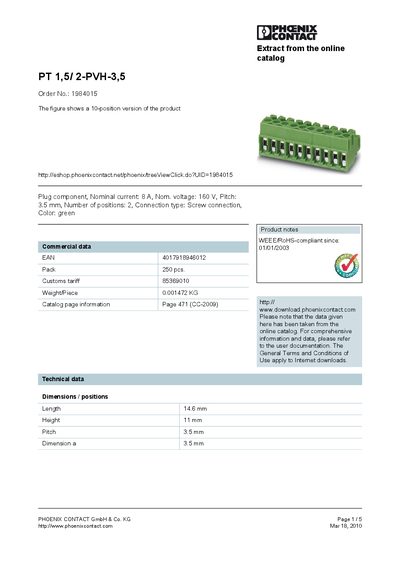

The handbook lists detailed technical specifications, dimensions, tightening torque values, certification approvals, and accessory part numbers, along with commercial data such as packaging and weight.
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 2 |
| Connection type | Screw connection |
| Color | green |
| Length | 14.6 mm |
| Height | 11 mm |
| Weight per piece | 0.001472 kg |
| WEEE/RoHS compliance date | 01/01/2003 |
The terminal block is rated for a nominal current of 8 A.
It measures 14.6 mm in length, 11 mm in height, with a 3.5 mm pitch.
It is approved under CUL, CCA, SEV, and UL certifications.
