PC 35 HC / 3-GF-15,00 is a connector produced by PHOENIX CONTACT with a rated current of 125 A, a rated voltage of 1000 V, a pitch of 15 mm, 3 positions, a green color and a soldering assembly.
The PC 35 HC/ 3-GF-15,00 is a green, solder‑type terminal block with a 15 mm pitch and three positions. It is rated for a nominal current of 125 A and a nominal voltage of 1000 V, with surge voltage ratings up to 8 kV.

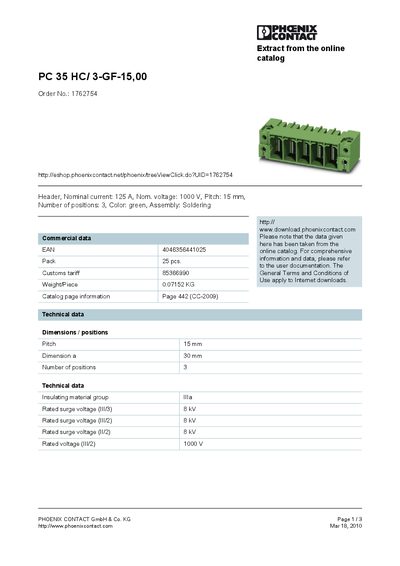

The leaflet provides technical data such as dimensions, insulating material, weight (0.07152 kg per piece), and commercial details like the EAN code 4046356441025 and order number 1762754. Diagrams, drilling plans, and solder pad geometry are also referenced.
| Nominal current | 125 A |
|---|---|
| Pitch | 15 mm |
| Number of positions | 3 |
The nominal current is 125 A.
The pitch is 15 mm.
It has three positions.
