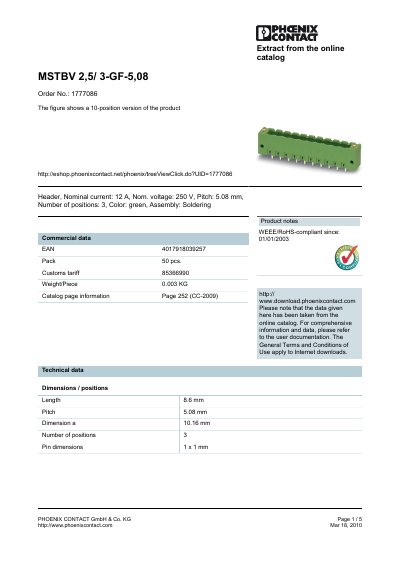

MSTBV 2,5/ 3-GF-5,08 is a 12 A rated current, 250 V rated voltage, 5.08 mm pitch, 3 positions, green, solderable terminal produced by PHOENIX CONTACT.
The MSTBV 2,5/3-GF-5,08 is a 3‑position green terminal block with a 5.08 mm pitch, rated for 12 A and 250 V. It is supplied in packs of 50 and complies with RoHS and WEEE regulations.
The document lists detailed technical specifications, certifications (CB, CSA, CUL, UL, VDE‑PZI, GOST, RS) and a range of accessories such as keying caps, marker cards and coding sections for labeling and identification.
| Nominal current | 12 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5.08 mm |
| Number of positions | 3 |
| Color | green |
| Insulating material | PBT |
| Inflammability class | UL 94 V0 |
| Rated surge voltage (III/3) | 4 kV |
| Rated voltage (III/2) | 320 V |
| Rated voltage (II/2) | 400 V |
| Weight per piece | 0.003 kg |
| EAN | 4017918039257 |
The nominal current is 12 A.
It uses a 5.08 mm pitch.
It has three positions.
Yes, it is RoHS compliant since 01/01/2003.
