MCD 1,5/ 4-G1-3,81 is a connection connector product of PHOENIX CONTACT with a rated current of 8 A, a rated voltage of 160 V, a pitch of 3.81 mm, 4 pins, and green color. It is assembled by soldering.
The MCD 1,5/4-G1-3,81 is a 4‑position terminal block with a 3.81 mm pitch, nominal current of 8 A, nominal voltage of 160 V, and a green housing. It is supplied for soldering assembly and is WEEE/RoHS‑compliant.

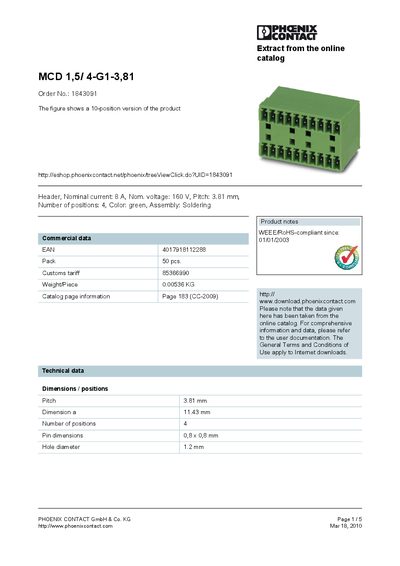

The handbook lists commercial data (EAN 4017918112288, pack of 50 pcs), detailed dimensions, pin and hole sizes, and a range of certifications (CB, CSA, CUL, GOST, UL, VDE‑PZI). Accessories such as plugs, adapters, and marker cards are also described, together with the manufacturer’s contact address.
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.81 mm |
| Number of positions | 4 |
| Color | green |
| Assembly | Soldering |
| Weight per piece | 0.00536 KG |
| EAN | 4017918112288 |
| Dimension a | 11.43 mm |
| Pin dimensions | 0.8 x 0.8 mm |
| Hole diameter | 1.2 mm |
| Certifications | CB, CSA, CUL, GOST, UL, VDE-PZI |
The terminal block is rated for a nominal current of 8 A.
It has four positions.
The pitch is 3.81 mm.
