The FMCD 1,5/ 6-ST-3,5 is a connector produced by PHOENIX CONTACT. It has an 8 A nominal current, a 160 V nominal voltage, a 3.5 mm pitch, 6 pins, and a spring cage connection. It is green in color.
The FMCD 1,5/6-ST-3,5 is a 6‑position spring‑cage connector from Phoenix Contact. It is designed for a nominal current of 8 A and a nominal voltage of 160 V, with a 3.5 mm pitch and green housing.

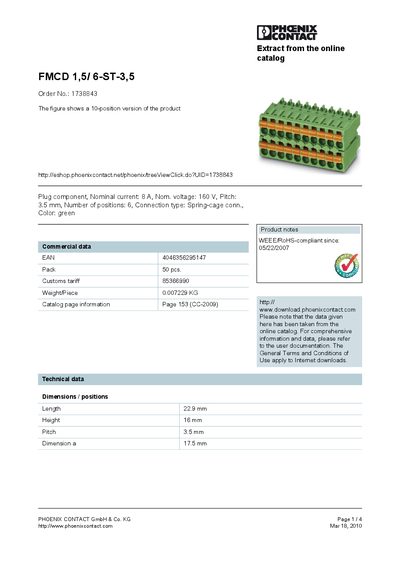

The handbook lists commercial data (EAN 4046356295147, pack of 50 pcs), technical data (rated surge voltage 2.5 kV, rated voltages 160 V/320 V), dimensions (length 22.9 mm, height 16 mm, pitch 3.5 mm, dimension a 17.5 mm), weight per piece (0.007229 kg), and compliance information (WEEE/RoHS‑compliant).
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 6 |
| Connection type | Spring‑cage conn. |
| Length | 22.9 mm |
| Height | 16 mm |
| Dimension a | 17.5 mm |
| Weight per piece | 0.007229 kg |
| EAN | 4046356295147 |
The nominal current is 8 A.
It has 6 positions.
The connector is 22.9 mm long, 16 mm high, with a 3.5 mm pitch and a dimension a of 17.5 mm.
