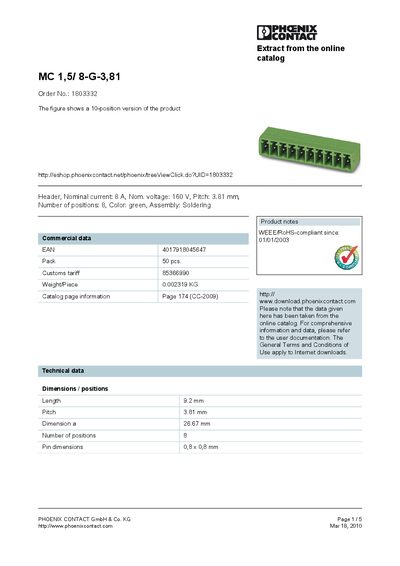

This document describes the features and characteristics of the MC 1,5/ 8-G-3,81 product from PHOENIX CONTACT GmbH & Co. KG. The product is a 10-position header connector with a nominal current of 8A, nominal voltage of 160V, pitch of 3.81mm, color green, and suitable for soldering assembly.
The MC 1,5/8-G-3,81 is a green, 8‑position terminal block with a 3.81 mm pitch, rated for 8 A nominal current and 160 V nominal voltage. Its compact dimensions (length 9.2 mm, pin size 0.8 × 0.8 mm) and low weight (0.002319 kg per piece) make it suitable for dense wiring applications.
The leaflet lists compatible accessories such as plug adapters, marker cards, and keying profiles, and details the product’s certifications (CB, CSA, CUL, GOST, UL, VDE‑PZI) and compliance with WEEE/RoHS regulations.
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.81 mm |
| Number of positions | 8 |
| Color | green |
| Length | 9.2 mm |
| Pin dimensions | 0.8 × 0.8 mm |
| Weight per piece | 0.002319 kg |
| Certifications | CB, CSA, CUL, GOST, UL, VDE‑PZI |
The nominal current is 8 A.
It has 8 positions.
The pitch is 3.81 mm.
It is certified by CB, CSA, CUL, GOST, UL and VDE‑PZI.
