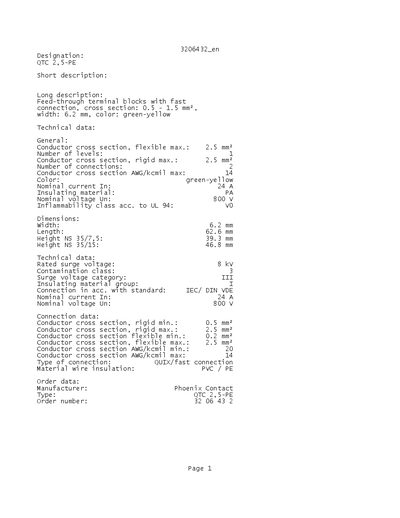

QTC 2,5-PE is a Phoenix Contact product. It is a feed-through terminal block with fast connection, cross section: 0.5 - 1.5 mm², width: 6.2 mm, color: green-yellow.
The QTC 2,5-PE is a feed‑through terminal block with fast QUIX connection, designed for conductor cross sections from 0.5 mm² to 2.5 mm². It is supplied in a green‑yellow color and complies with IEC/DIN VDE standards.
Key specifications include a nominal current of 24 A, nominal voltage of 800 V, a width of 6.2 mm, length of 62.6 mm, and surge voltage rating of 8 kV. The terminal block offers two connection levels and is suitable for both rigid and flexible conductors.
| Nominal current (In) | 24 A |
|---|---|
| Nominal voltage (Un) | 800 V |
| Conductor cross section, rigid max. | 2.5 mm² |
| Number of connections | 2 |
| Width | 6.2 mm |
| Length | 62.6 mm |
| Rated surge voltage | 8 kV |
| Connection type | QUIX/fast connection |
The terminal block is rated for a nominal current of 24 A.
It is rated for a nominal voltage of 800 V.
The width is 6.2 mm, length 62.6 mm, and height varies (39.3 mm or 46.8 mm depending on version).
It uses a QUIX/fast connection system.
