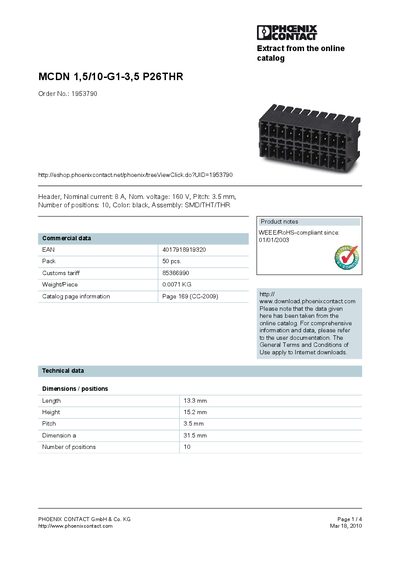

MCDN 1,5/10-G1-3,5 P26THR is a connector produced by PHOENIX CONTACT. The rated current is 8 A, the rated voltage is 160 V, the pin spacing is 3.5 mm, there are 10 pins, the color is black, and it can be assembled by SMD/THT/THR.
The MCDN 1,5/10-G1-3,5 P26THR is a 10‑position terminal block with a 3.5 mm pitch, rated for 8 A nominal current and 160 V nominal voltage. Its compact size (13.3 mm × 15.2 mm) and black SMD/THT/THR construction make it suitable for a variety of wiring applications.
The sheet lists accessories such as marker cards and keying adapters, provides ordering information (Order No. 1953790), and includes certification details (UL, CUL) and compliance notes (WEEE/RoHS).
| Nominal current | 8 A per position |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 10 |
| Length | 13.3 mm |
| Height | 15.2 mm |
| Weight per piece | 0.0071 kg |
| EAN | 4017918919320 |
The terminal block is rated for 8 A nominal current per position.
It has 10 positions.
The pitch is 3.5 mm.
It can be ordered using Order No. 1953790 via the Phoenix Contact e‑shop.
