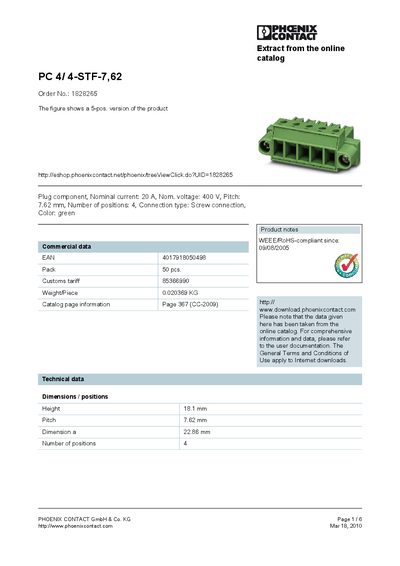

PC 4/ 4-STF-7,62 is a connector produced by PHOENIX CONTACT. It has a rated current of 20 A, rated voltage of 400 V, pitch of 7.62 mm, connection type of screw connection, and color of green.
The PC 4/4-STF-7,62 is a 4‑position screw‑terminal block with a 7.62 mm pitch, rated for 20 A and 400 V. It features a green housing, a compact height of 18.1 mm, and a weight of 0.020 kg per piece. Technical specifications include tightening torque (0.5 Nm min, 0.6 Nm max), surge voltage ratings up to 6 kV, and various voltage ratings for different insulation classes.
The leaflet also lists compatible accessories such as marker pens, marker cards, coding profiles, and a screwdriver, as well as certification approvals (CSA, CUL, UL, etc.) and derating curves for ambient temperature. Contact information for Phoenix Contact and reference drawings are provided at the end of the document.
| Nominal current | 20 A |
|---|---|
| Nominal voltage | 400 V |
| Pitch | 7.62 mm |
| Number of positions | 4 |
| Connection type | Screw connection |
| Color | green |
| Weight per piece | 0.020369 kg |
The terminal block is rated for a nominal current of 20 A.
The pitch is 7.62 mm.
The minimum tightening torque is 0.5 Nm and the maximum is 0.6 Nm.
