PC 4/10-ST-7,62 is a connector product manufactured by PHOENIX CONTACT. The rated current is 20 A, the rated voltage is 400 V, the connection method is screw connection, and the color is green.

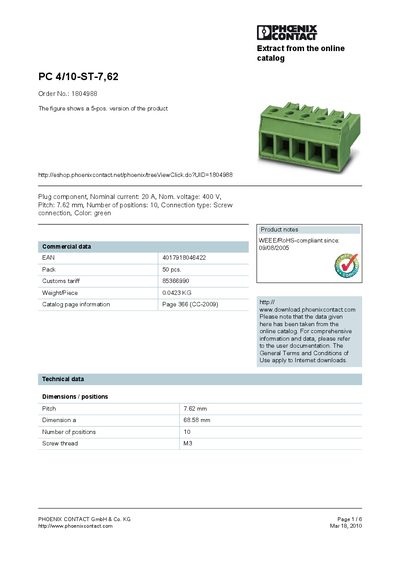

The PC 4/10-ST-7,62 is a green plug component terminal block with a 7.62 mm pitch and 10 positions, rated for 20 A nominal current and 400 V nominal voltage. Technical data include tightening torque (0.5 Nm min, 0.6 Nm max), dimensions (68.58 mm length), and weight (0.0423 kg per piece).\n\nThe sheet also lists accessories such as cable housings, marker cards, and tools, as well as certifications (BV, CSA, CUL, GOST, RS, UL). Contact information for Phoenix Contact GmbH & Co. KG in Blomberg, Germany is provided.
| Nominal current | 20 A |
|---|---|
| Nominal voltage | 400 V |
| Pitch | 7.62 mm |
| Number of positions | 10 |
| Weight per piece | 0.0423 kg |
| EAN | 4017918046422 |
| Dimension a (length) | 68.58 mm |
The nominal current is 20 A.
It has 10 positions.
The pitch is 7.62 mm.
The tightening torque ranges from 0.5 Nm (minimum) to 0.6 Nm (maximum).
