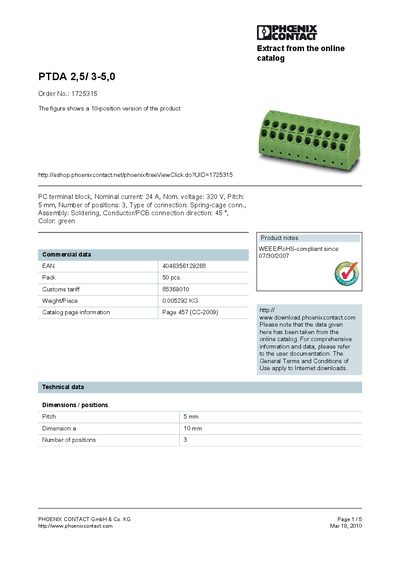

PTDA 2,5/ 3-5,0 is a PC terminal block with a nominal current of 24 A, a nominal voltage of 320 V, a pitch of 5 mm, and 3 positions. It is available in green and can be assembled by soldering.
The PTDA 2.5/3-5.0 is a 3‑position terminal block with a 5 mm pitch, rated for 24 A and 320 V. It features a spring‑cage connection, soldering assembly, and a 45° conductor‑to‑PCB direction. The product is supplied in green color and complies with RoHS/WEEE regulations.
The document provides detailed technical data such as surge voltage ratings (4 kV), nominal voltages (400 V / 630 V), dimensions, weight, and certification information (CUL, UL). Diagrams include drilling plans, solder pad geometry, and derating curves for temperature.
| Nominal current | 24 A |
|---|---|
| Nominal voltage | 320 V |
| Pitch | 5 mm |
| Number of positions | 3 |
| Type of connection | Spring‑cage |
| Assembly method | Soldering |
| Weight per piece | 0.005292 kg |
The terminal block is rated for a nominal current of 24 A.
The pitch is 5 mm.
It has three positions.
