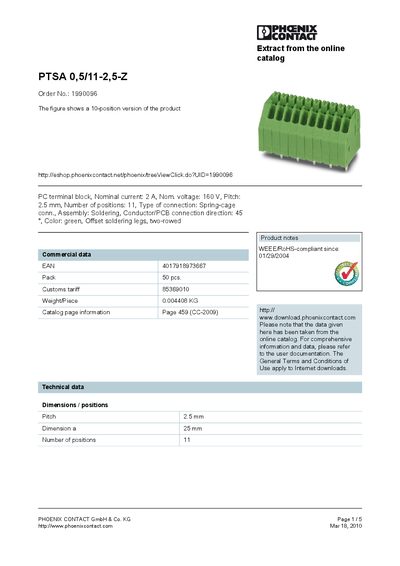

PTSA 0,5/11-2,5-Z is a PC terminal block with a nominal current of 2 A, a nominal voltage of 160 V, a pitch of 2.5 mm, and 11 positions. It is made of spring-cage connector and is assembled by soldering. The color is green.
The PTSA 0.5/11-2.5-Z is a 10‑position (available also as 5‑position) spring‑cage terminal block with a 2.5 mm pitch. It is rated for a nominal current of 2 A and a nominal voltage of 160 V, and is supplied in a green‑colored, two‑row configuration for solder‑on PCB assembly.
The product complies with WEEE/RoHS regulations and carries certifications such as CUL, UL and VDE‑PZI. Ordering information, dimensional drawings and derating diagrams are provided, and further details can be found in the online catalog or user documentation.
| Nominal current | 2 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 2.5 mm |
| Number of positions | 11 |
| Connection type | Spring‑cage |
| Assembly method | Soldering |
The terminal block is rated for a nominal current of 2 A.
The pitch of the device is 2.5 mm.
It provides 11 positions (10‑position version shown).
