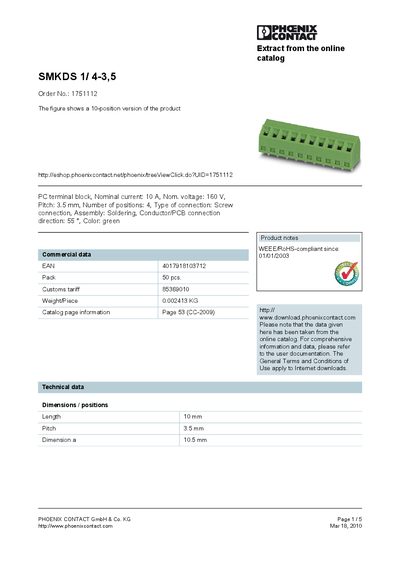

This document is about the product SMKDS 1/4-3.5 from PHOENIX CONTACT GmbH & Co. KG. The product is a PC terminal block with a nominal current of 10A, nominal voltage of 160V, pitch of 3.5mm, 4 positions, screw connection, soldering assembly, conductor/PCB connection direction of 55°, and green color.
The SMKDS 1/4-3,5 is a 4‑position screw‑type terminal block with a 3.5 mm pitch, rated for 10 A and 160 V. It is supplied in a green housing and can be assembled by soldering or screw connection.
The handbook lists technical data such as dimensions, tightening torque, surge and rated voltages, certifications, and accessories. Diagrams for drilling plans and solder pad geometry are included, and contact details for Phoenix Contact are provided for further information.
| Nominal current | 10 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 4 |
| Type of connection | Screw connection |
| Assembly method | Soldering |
| Conductor/PCB direction | 55 ° |
| Color | green |
| Length | 10 mm |
| Weight per piece | 0.002413 kg |
The terminal block is rated for a nominal current of 10 A.
It has four positions.
The pitch is 3.5 mm.
