PST 1,3/ 5-LV-5,0 is a 5-pin header produced by PHOENIX CONTACT with a nominal current of 14A, a nominal voltage of 250V, a pitch of 5mm, a black color and a soldering assembly.

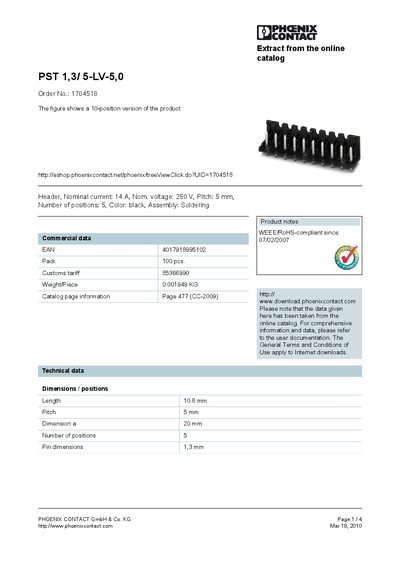

This leaflet describes the Phoenix Contact PST 1,3/5-LV-5,0 connector, a 5‑position, 5 mm pitch terminal block intended for soldered assembly. It includes basic commercial data such as part number, EAN, packaging, and weight.
Technical details cover electrical ratings (14 A nominal current, 250 V nominal voltage), mechanical dimensions (length 10.8 mm, pin diameter 1.3 mm), and certification information (UL, CUL, EN‑VDE). A drilling plan and solder‑pad geometry drawing are also provided.
| Nominal current | 14 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5 mm |
| Number of positions | 5 |
| Length | 10.8 mm |
| Pin diameter | 1.3 mm |
| Weight per piece | 0.001949 kg |
| EAN | 4017918995102 |
The connector is rated for a nominal current of 14 A.
It has five positions.
The pitch is 5 mm.
The overall length is 10.8 mm.
