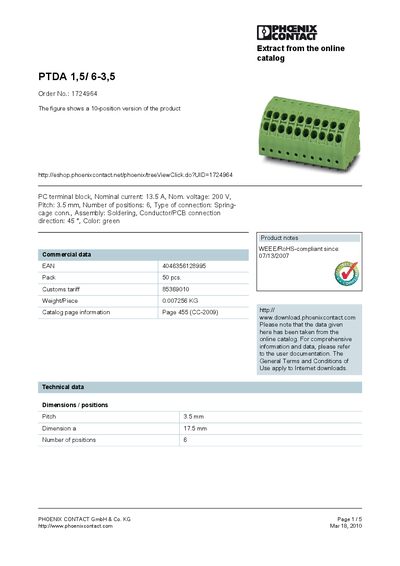

PTDA 1,5 / 6-3,5 is a terminal block produced by PHOENIX CONTACT. It has a rated current of 13.5 A, a rated voltage of 200 V, a pitch of 3.5 mm, 6 connection points, a spring cage connection, a soldering assembly, a 45° conductor/PCB connection direction, and a green color.
The PTDA 1,5/6-3,5 is a green, spring‑cage terminal block with a 3.5 mm pitch and six positions. It is designed for soldering assembly and features a 45° conductor/PCB connection direction. Key electrical ratings include a nominal current of 13.5 A and a nominal voltage of 200 V.
The document provides detailed technical data such as dimensions, surge voltage ratings, insulation material, and certification approvals (CUL, UL). It also includes wiring diagrams, derating curves, and contact information for Phoenix Contact GmbH & Co. KG.
| Nominal current | 13.5 A |
|---|---|
| Nominal voltage | 200 V |
| Pitch | 3.5 mm |
| Number of positions | 6 |
| Type of connection | Spring‑cage |
| Assembly method | Soldering |
| Conductor/PCB direction | 45° |
| Color | Green |
| Weight per piece | 0.007256 kg |
| RoHS compliance date | 07/13/2007 |
The nominal current is 13.5 A.
It has six positions.
The pitch is 3.5 mm.
Yes, it has been RoHS compliant since July 13 2007.
