This product is a FK-MC 0,5/ 3-ST-2,5 plug component produced by PHOENIX CONTACT. It has a nominal current of 4A, a rated voltage of 100V, a pitch of 2.5mm, 3 positions, a spring-cage connection type and a green color.
The FK-MC 0,5/ 3-ST-2,5 is a green‑colored spring‑cage terminal block connector with a 2.5 mm pitch and three positions. It is rated for a nominal current of 4 A and a nominal voltage of 100 V, and complies with WEEE/RoHS regulations since 01/01/2003.

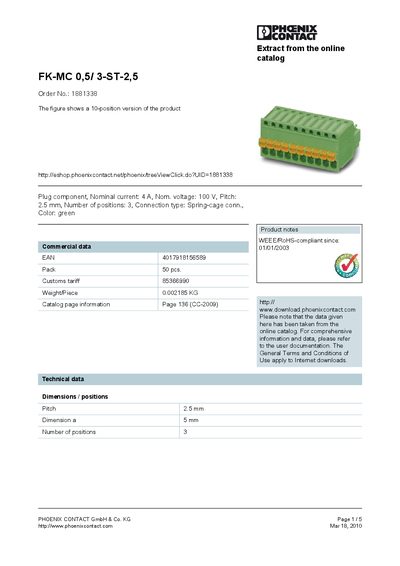

The data sheet provides detailed technical information such as dimensions, weight per piece, certification marks (CB, CUL, GOST, UL, VDE‑PZI) and a list of compatible accessories and tools. Additional product references and ordering information are also included.
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 100 V |
| Pitch | 2.5 mm |
| Number of positions | 3 |
| Weight per piece | 0.002185 kg |
| Dimension a | 5 mm |
| RoHS compliance date | 01/01/2003 |
The connector is rated for a nominal current of 4 A.
It is rated for a nominal voltage of 100 V.
The pitch is 2.5 mm.
It has three positions.
