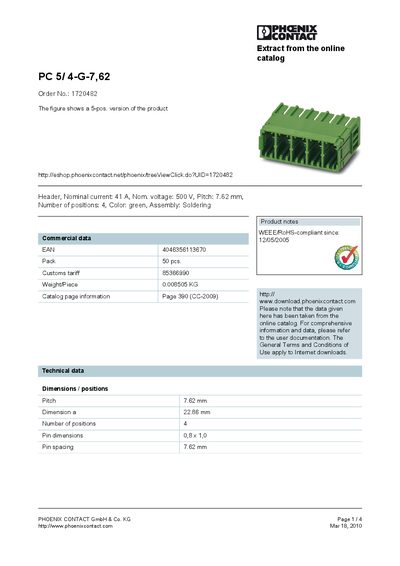

This document introduces the PC 5/ 4-G-7,62 product from PHOENIX CONTACT GmbH & Co. KG. The product is a 5-position connector with a nominal current of 41A, nominal voltage of 500V, pitch of 7.62mm, green color, and can be installed by soldering.
The PC 5/4-G-7.62 is a 4‑position, green‑colored connector from Phoenix Contact designed for soldered assembly. It features a 7.62 mm pitch and a nominal current rating of 41 A at 500 V.
The document provides detailed technical specifications, dimensional drawings, certification information (CUL, UL) and compliance data (RoHS since 12/05/2005). It also lists packaging details and weight per piece.
| Nominal current | 41 A |
|---|---|
| Nominal voltage | 500 V |
| Pitch | 7.62 mm |
| Number of positions | 4 |
| Color | green |
| Assembly method | Soldering |
| Weight per piece | 0.008505 kg |
| EAN | 4046356113670 |
| RoHS compliance date | 12/05/2005 |
The connector is rated for a nominal current of 41 A.
It has 4 positions.
The pitch is 7.62 mm.
Yes, it has been RoHS compliant since 12 May 2005.
