PST 1,3/ 7-5,0 is a black connector with 7 pins produced by PHOENIX CONTACT, with a rated current of 12A and rated voltage of 250V, and a pin spacing of 5mm.

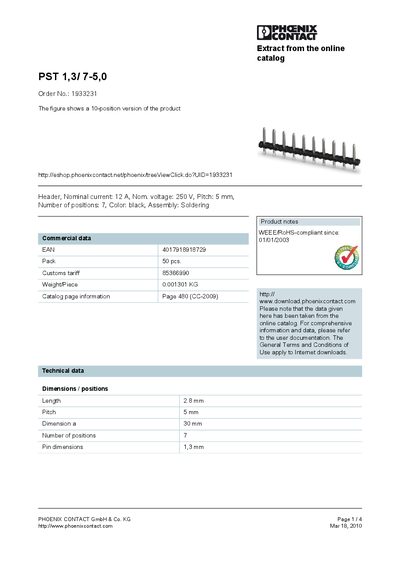

This handbook presents the technical specifications and commercial details of the Phoenix Contact PST 1,3/7-5,0 connector. It includes nominal current and voltage ratings, pitch, number of positions, and dimensional data such as length and pin size.
Additional sections cover certification information, RoHS compliance, drawing diagrams for drilling and solder pad geometry, and contact details for Phoenix Contact. The document is extracted from the online catalog and references the original user documentation for more comprehensive information.
| Nominal current | 12 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5 mm |
| Number of positions | 7 |
| Length | 2.8 mm |
| Dimension a | 30 mm |
| Pin dimensions | 1.3 mm |
| Weight per piece | 0.001301 kg |
| EAN | 4017918918729 |
| RoHS compliance | Since 01/01/2003 |
The connector is rated for a nominal current of 12 A (depends on the plug used).
It has 7 positions.
The pitch is 5 mm.
Yes, it has been RoHS compliant since 01/01/2003.
