ICV 2,5/10-G-5,08 is a connector produced by PHOENIX CONTACT. Its rated current is 12 A, rated voltage is 320 V, the pin spacing is 5.08 mm, and it can insert 10 pins. The color is green, and it is assembled by soldering.

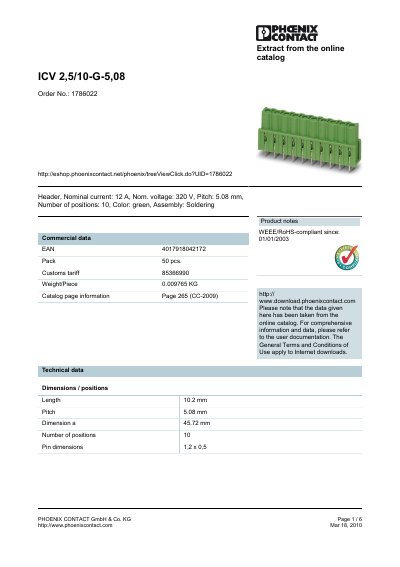

The ICV 2,5/10-G-5,08 is a green‑colored, 10‑position electrical connector with a 5.08 mm pitch. It is rated for a nominal current of 12 A and a nominal voltage of 320 V, and is supplied for soldering assembly. The datasheet provides detailed dimensions, weight, and material specifications.
Additional information includes a list of compatible accessories, part numbers for headers, plugs and adapters, and certification details such as CB, CSA, CUL, GOST, UL and VDE‑PZI. A dimensioned drawing and drilling plan are also included for installation reference. This manual is written in Chinese.
| Nominal current | 12 A |
|---|---|
| Nominal voltage | 320 V |
| Pitch | 5.08 mm |
| Number of positions | 10 |
| Color | green |
| Assembly type | Soldering |
| Weight per piece | 0.009765 kg |
| Length | 10.2 mm |
| Pin dimensions | 1.2 × 0.5 mm |
The connector is rated for a nominal current of 12 A.
It is certified by CB, CSA, CUL, GOST, UL and VDE‑PZI.
The pitch is 5.08 mm.
It has 10 positions.
