MKDSN 2,5/ 3-5,08 is a PC terminal block with 3 connection points produced by PHOENIX CONTACT
The MKDSN 2,5/3-5,08 is a 2‑position terminal block from Phoenix Contact. It features a screw connection, soldering assembly, and a green housing. The block is rated for 16 A nominal current and 250 V nominal voltage with a 5.08 mm pitch and three positions.

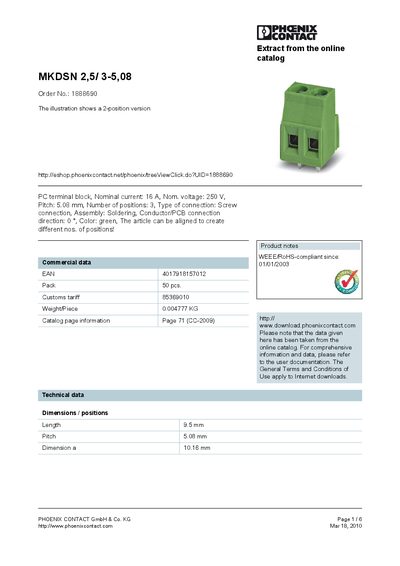

The document provides detailed technical data, dimensions, certification information, accessories, and ordering details, including the order number 1888690 and packaging specifications.
| Nominal current | 16 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5.08 mm |
| Number of positions | 3 |
| Type of connection | Screw connection |
| Assembly | Soldering |
| Color | green |
The terminal block is rated for a nominal current of 16 A.
It has three positions.
The pitch is 5.08 mm.
It uses a screw connection.
