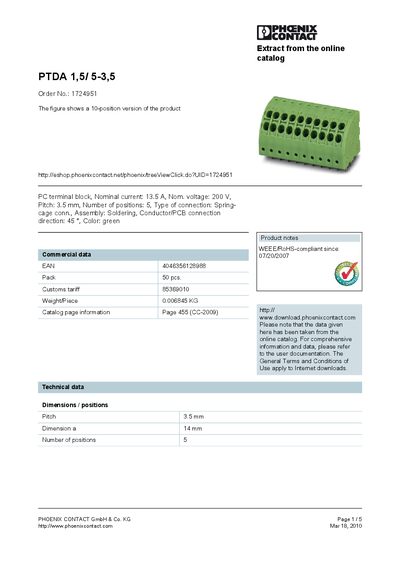

This document introduces the specifications and characteristics of the PC terminal block produced by PHOENIX CONTACT GmbH & Co. KG, including rated current, rated voltage, and connection method.
The PTDA 1,5/5-3,5 is a 5‑position spring‑cage terminal block from Phoenix Contact. It is designed for soldered PCB mounting with a 3.5 mm pitch and supports a nominal current of 13.5 A at 200 V.
The datasheet provides detailed electrical ratings, mechanical dimensions, certification information (CUL, UL) and a derating diagram for temperature‑dependent current capacity. Packaging is 50 pieces per pack, and the part complies with WEEE/RoHS regulations.
| Nominal current | 13.5 A |
|---|---|
| Nominal voltage | 200 V |
| Pitch | 3.5 mm |
| Number of positions | 5 |
| Weight per piece | 0.006845 kg |
| EAN | 4046356128988 |
The terminal block is rated for a nominal current of 13.5 A.
It has five positions.
The pitch is 3.5 mm.
