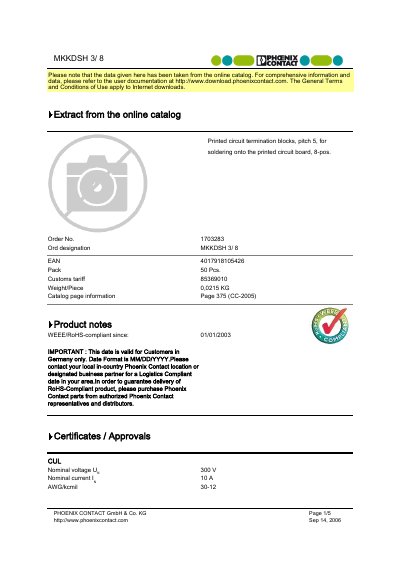

This document is the online catalog of MKKDSH 3/8, which contains the product's order number, EU code, weight, packaging number, catalog page number, WEEE/RoHS compliance date, certifications, rated voltage, rated current, AWG/kcmil, manufacturer and other information
The MKKDSH 3/8 is an 8‑position printed circuit termination block with a 5 mm pitch, intended for soldering onto printed circuit boards. It is rated for a nominal voltage of 300 V, a nominal current of 10 A, and uses AWG/kcmil 30‑12 conductors.
The handbook lists compatible accessories such as single covers, insertion bridges, marker pens and cards, and gives ordering details including a pack size of 50 pieces, EAN code 4017918105426, and contact information for Phoenix Contact.
| Nominal voltage | 300 V |
|---|---|
| Nominal current | 10 A |
| AWG/kcmil | 30-12 |
| Weight per piece | 0.0215 kg |
| Pack quantity | 50 pcs |
| EAN | 4017918105426 |
The nominal voltage is 300 V.
It is supplied in packs of 50 pieces.
Yes, it has been RoHS compliant since 01/01/2003.
