PC 5/ 3-G-7,62 is a connector produced by PHOENIX CONTACT. The rated current is 41 A, the rated voltage is 500 V, the pin spacing is 7.62 mm, the pin dimensions are 0.8 x 1.0, and the hole diameter is 1.3 mm.
The PC 5/3‑G‑7.62 is a 5‑position, green‑colored solder‑type connector from Phoenix Contact, rated for a nominal current of 41 A and a nominal voltage of 500 V. It features a 7.62 mm pitch and complies with RoHS and WEEE regulations.

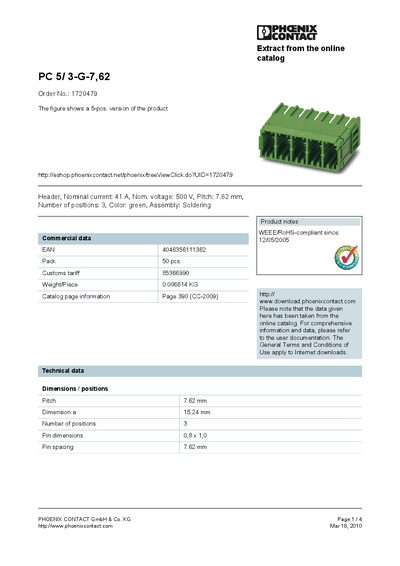

The handbook lists detailed technical data, including dimensions, pin spacing, insulation material, surge voltage ratings, and certifications (UL, CUL). It also provides a drilling plan, solder‑pad geometry, and contact information for ordering and support.
| Nominal current | 41 A |
|---|---|
| Nominal voltage | 500 V |
| Pitch | 7.62 mm |
| Number of positions | 3 |
| Color | green |
| Assembly method | Soldering |
| Weight per piece | 0.006614 kg |
| RoHS compliance date | 12/05/2005 |
| EAN | 4046356111362 |
The connector is rated for a nominal current of 41 A.
The pitch of the connector is 7.62 mm.
It has three positions.
Yes, it has been RoHS compliant since 12 May 2005.
