MCVW 1,5/12-ST-3,5 is a connector product with a rated current of 8 A, a rated voltage of 160 V, a pitch of 3.5 mm, and 12 positions. It uses a screw connection method.

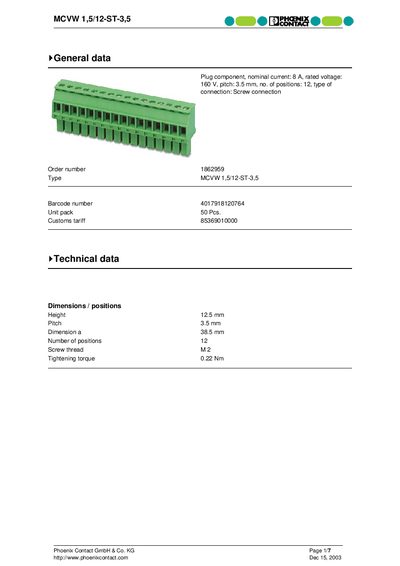

This leaflet describes the MCVW 1,5/12-ST-3,5 terminal block, a screw‑connection plug component with a nominal current of 8 A and a rated voltage of 160 V. Key mechanical data include a 3.5 mm pitch, 12 positions, a height of 12.5 mm and a mounting screw thread of M2.
Additional sections list certificates (UL, CUL), drawing references, compatible accessories such as marker pens and cards, and related header products. Contact information for Phoenix Contact GmbH & Co. KG in Blomberg, Germany, is also provided.
| Nominal current | 8 A |
|---|---|
| Rated voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 12 |
| Height | 12.5 mm |
| Dimension a | 33.5 mm |
| Screw thread | M2 |
| Tightening torque | 0.22 Nm |
The nominal current is 8 A.
It has 12 positions.
The pitch is 3.5 mm.
The rated voltage is 160 V.
