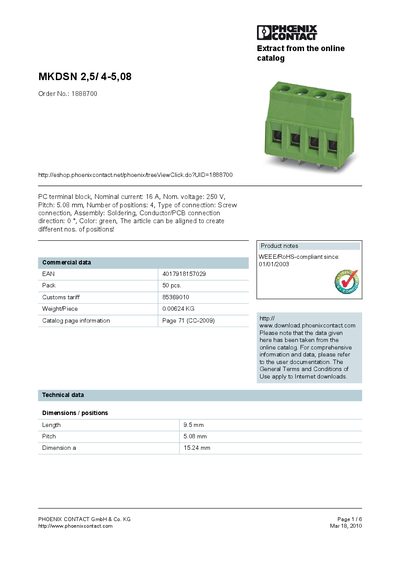

Phoenix Contact MKDSN 2,5/4-5,08 Product Handbook
The MKDSN 2,5/4-5,08 is a screw‑type terminal block designed for 5.08 mm pitch applications. It supports up to four positions and is suitable for soldering or direct PCB insertion, with a nominal current of 16 A and a nominal voltage of 250 V.
The document lists technical data such as length, weight, tightening torque, insulation material, and certification approvals, as well as accessories, marking information, and drawing references for installation and wiring.
Phoenix Contact MKDSN 2 specifications
| Nominal current | 16 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5.08 mm |
| Number of positions | 4 |
| Length | 9.5 mm |
| Weight per piece | 0.00624 kg |
| Inflammability class | UL 94 |
All Phoenix Contact MKDSN 2 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the nominal current rating of the MKDSN 2,5/4-5,08 terminal block?
The terminal block is rated for a nominal current of 16 A.
What is the pitch of the MKDSN 2,5/4-5,08?
The pitch of the terminal block is 5.08 mm.
What is the nominal current rating of the MKDSN 2,5/3-5,08?
The terminal block is rated for a nominal current of 16 A.
How many positions does the MKDSN 2,5/3-5,08 have?
It has three positions.
What is the nominal current rating of the MKDSN 2,5/2-5,08?
The terminal block is rated for a nominal current of 16 A.
How many positions does the MKDSN 2,5/2-5,08 have?
It has two positions.
