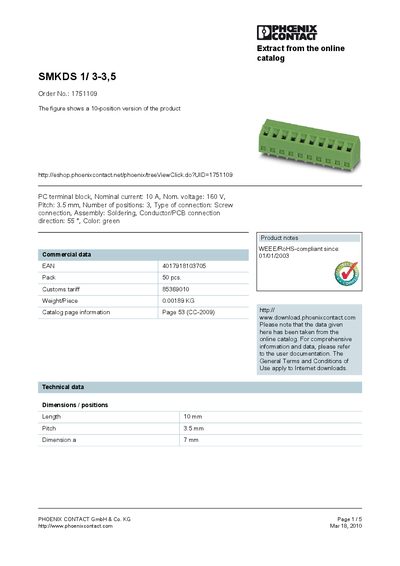

This document describes the features and characteristics of the PC terminal block product SMKDS 1/ 3-3,5 from PHOENIX CONTACT GmbH & Co. KG, including nominal current, nominal voltage, dimensions, etc.
The SMKDS 1/3-3.5 is a 3‑position, 10‑A, 160‑V PC terminal block with a 3.5 mm pitch, designed for screw connection and optional soldering. It is supplied in green housing and complies with RoHS/WEEE regulations.
The document lists detailed dimensions, electrical ratings, tightening torque values, certification approvals (CB, CSA, CUL, UL, etc.), and available accessories such as marker cards and compatible screwdrivers. A drilling plan and solder‑pad geometry are also provided.
| Nominal current | 10 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 3 |
| Length | 10 mm |
| Weight per piece | 0.00189 kg |
The nominal current rating is 10 A.
It has three positions.
It is certified by CB, CCA, CSA, CUL, GOST, SEV, and UL.
The pitch is 3.5 mm.
