This document describes the features and characteristics of the PC terminal block produced by PHOENIX CONTACT GmbH & Co. KG. The product has 10 positions, a nominal current of 24A, a nominal voltage of 320V, and a pitch of 5mm.

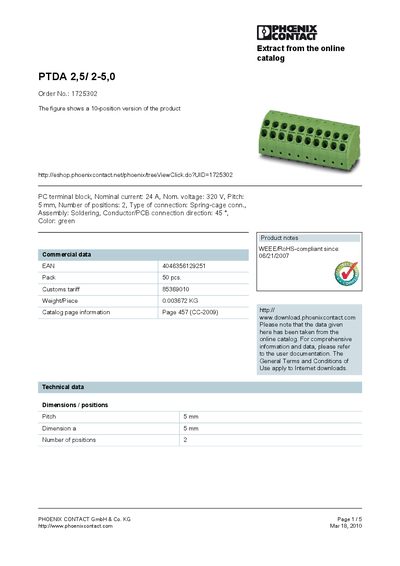

The PTDA 2,5/2-5,0 is a terminal block with a 5 mm pitch, nominal current of 24 A and nominal voltage of 320 V. It is offered in a 2‑position version (10‑position version shown in the figure) and is supplied in green color.
The handbook lists technical data such as rated surge voltages, connection dimensions, certification approvals (CUL, UL), weight, packaging (50 pcs), and WEEE/RoHS compliance. Diagrams include drilling plans and derating curves for temperature.
| Nominal current | 24 A |
|---|---|
| Nominal voltage | 320 V |
| Pitch | 5 mm |
| Number of positions | 2 |
| Inflammability class (UL 94) | UL 94 |
| Weight per piece | 0.003672 kg |
| EAN | 4046356129251 |
| WEEE/RoHS compliance date | 06/21/2007 |
The nominal current rating is 24 A.
The pitch is 5 mm.
It has 2 positions.
Yes, it has been RoHS compliant since 06/21/2007.
