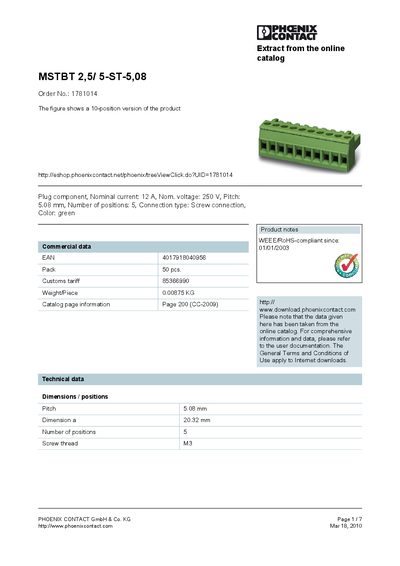

This data sheet introduces the MSTBT 2,5/ 5-ST-5,08's specifications, including model, color, rated current, rated voltage, mounting type, order number, etc.
This handbook presents the key specifications of the Phoenix Contact MSTBT 2,5/5-ST-5,08 terminal block, including nominal current (12 A), nominal voltage (250 V), pitch (5.08 mm), and a 5‑position layout. It also lists mechanical details such as tightening torque (0.5 Nm min, 0.6 Nm max) and weight per piece (0.00875 kg).
Additional sections cover available accessories, certification approvals (CB, CSA, CUL, UL, VDE‑PZI), and wiring diagrams. Contact information for Phoenix Contact and ordering details are provided at the end of the document.
| Nominal current | 12 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5.08 mm |
| Number of positions | 5 |
| Connection type | Screw connection |
| Color | green |
The terminal block is rated for a nominal current of 12 A.
The pitch of the terminal block is 5.08 mm.
The plug component uses a screw connection (and also a spring‑cage version is listed).
