IC 2,5/ 3-ST-5,08 is a green 3-position connector produced by PHOENIX CONTACT company, with a rated current of 12 A and a rated voltage of 250 V
The IC 2,5/3-ST-5,08 is a green‑colored plug component with a nominal current of 12 A and a nominal voltage of 250 V (or 320 V for certain variants). It features a 5.08 mm pitch, three positions, and a screw or spring‑cage connection type. Technical details such as tightening torque, surge voltage ratings, and insulating material are provided.

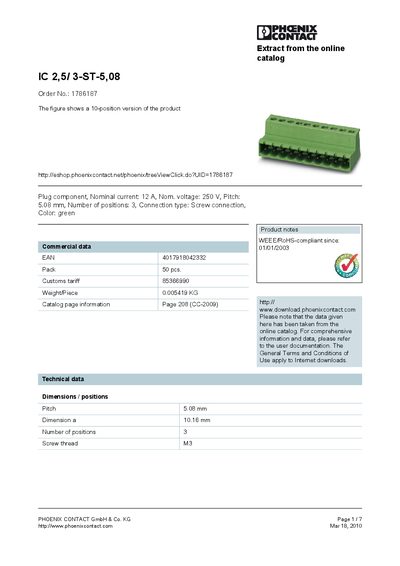

The document includes ordering data (Order No. 1786187, EAN 4017918042332, pack of 50 pcs.), certification information (CSA, CUL, UL, VDE‑PZI), and a dimensioned drawing. The product is WEEE/RoHS‑compliant since 01/01/2003 and is supplied by Phoenix Contact GmbH & Co. KG in Blomberg, Germany.
| Nominal current | 12 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5.08 mm |
| Number of positions | 3 |
| Connection type | Screw connection |
| Color | green |
| Weight per piece | 0.005419 kg |
| EAN | 4017918042332 |
| RoHS compliance date | 01/01/2003 |
The nominal current is 12 A.
It has a 5.08 mm pitch and three positions.
Yes, it has been RoHS‑compliant since 01/01/2003.
