GMSTB 2,5/ 5-ST-7,62 is a connector product from PHOENIX CONTACT, with a rated current of 12A, a rated voltage of 400V, a pitch of 7.62mm, 5 pins and a screw connection. The color is green.
The GMSTB 2,5/5-ST-7,62 is a 5‑position plug component with a 7.62 mm pitch, designed for screw‑type connections in industrial electrical applications. It is rated for 12 A nominal current and 400 V nominal voltage, with a range of approved conductor cross‑sections and insulating material specifications.

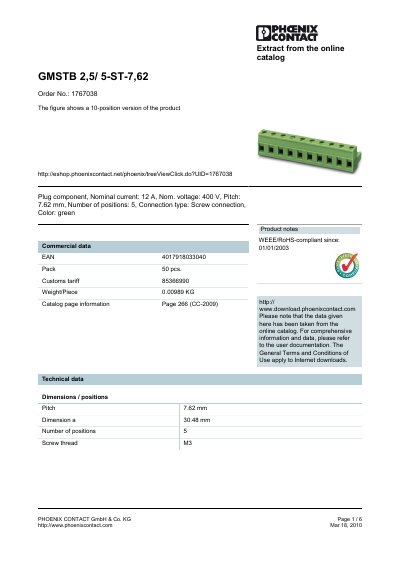

The document lists accessories such as marker cards, keying profiles, and screwdriver tools, and provides certification information (CB, CSA, CUL, GOST, UL, VDE‑PZI). Dimensional data, tightening torque values, and packaging details are also included.
| Nominal current | 12 A |
|---|---|
| Nominal voltage | 400 V |
| Pitch | 7.62 mm |
| Number of positions | 5 |
| Insulating material group | I |
| Rated voltage (III/2) | 630 V |
| Rated voltage (II/2) | 1000 V |
| Tightening torque (min) | 0.5 Nm |
| Tightening torque (max) | 0.6 Nm |
| Weight per piece | 0.00989 kg |
| EAN | 4017918033040 |
| Dimension a | 30.48 mm |
The nominal current is 12 A.
It is certified by CB, CSA, CUL, GOST, UL and VDE‑PZI.
The pitch is 7.62 mm and it has 5 positions.
