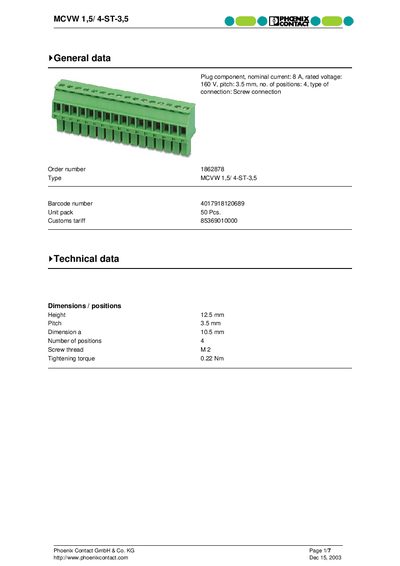

MCVW 1,5/ 4-ST-3,5 is a plug component product of Phoenix Contact. It has a rated current of 8 A, a rated voltage of 160 V, a pitch of 3.5 mm, and 4 positions. The connection type is screw connection.
The MCVW 1,5/4-ST-3,5 is a 4‑position screw‑connection terminal block from Phoenix Contact, designed for nominal currents of 8 A and rated voltages of 160 V. It features a 3.5 mm pitch, a compact height of 12.5 mm, and a M2 screw thread for secure mounting.
The handbook lists detailed technical specifications, including dimensions, tightening torque, insulating material, and certification data (UL, CUL). It also provides part numbers for accessories such as marker pens and cards, as well as related product references and contact information for Phoenix Contact.
| Nominal current | 8 A |
|---|---|
| Rated voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 4 |
| Height | 12.5 mm |
| Dimension a | 10.5 mm |
| Screw thread | M2 |
| Tightening torque | 0.22 Nm |
The nominal current rating is 8 A.
It has 4 positions.
The recommended tightening torque is 0.22 Nm.
