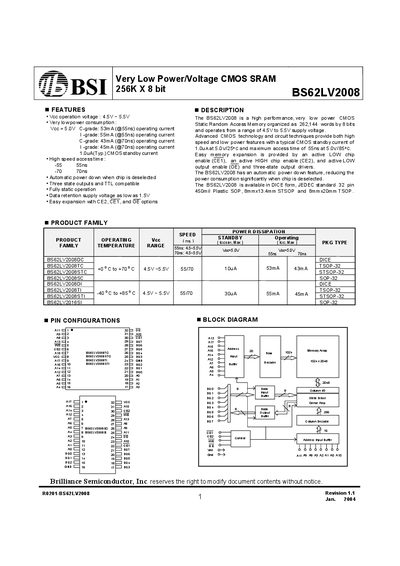

R0201-BS62LV2008 Revision 1.1 Jan. 2004 1 A17 is a very low power/voltage CMOS SRAM with a capacity of 256K x 8 bits. The features of this product include an operating voltage range of 4.5V to 5.5V, very low power consumption, and high-speed access time. It also has features such as automatic power down, three-state outputs, and TTL compatibility.
The BS62LV2008 is a very low‑power, high‑speed CMOS static RAM organized as 262,144 words × 8 bits. It operates from a 4.5 V to 5.5 V supply and features automatic power‑down when deselected, three‑state TTL‑compatible outputs, and fully static operation.
The device is offered in multiple packages (DICE, SOP‑32, STSOP‑32, TSOP‑32) and supports a wide temperature range from –40 °C to +85 °C. Detailed electrical characteristics, timing diagrams, and pin descriptions are provided for both DC and AC operation.
| Operating voltage | 4.5 V ~ 5.5 V |
|---|---|
| Standby current (CMOS) | 1.0 µA (typ.) |
| Access time (max) | 55 ns |
| Power dissipation | 1.0 W |
| Operating temperature range | -40 °C ~ +85 °C |
The device operates from 4.5 V to 5.5 V.
The typical maximum access time is 55 ns, with a 70 ns limit.
Yes, the chip automatically powers down when it is deselected.
